I went and collected the car from the spray painter.

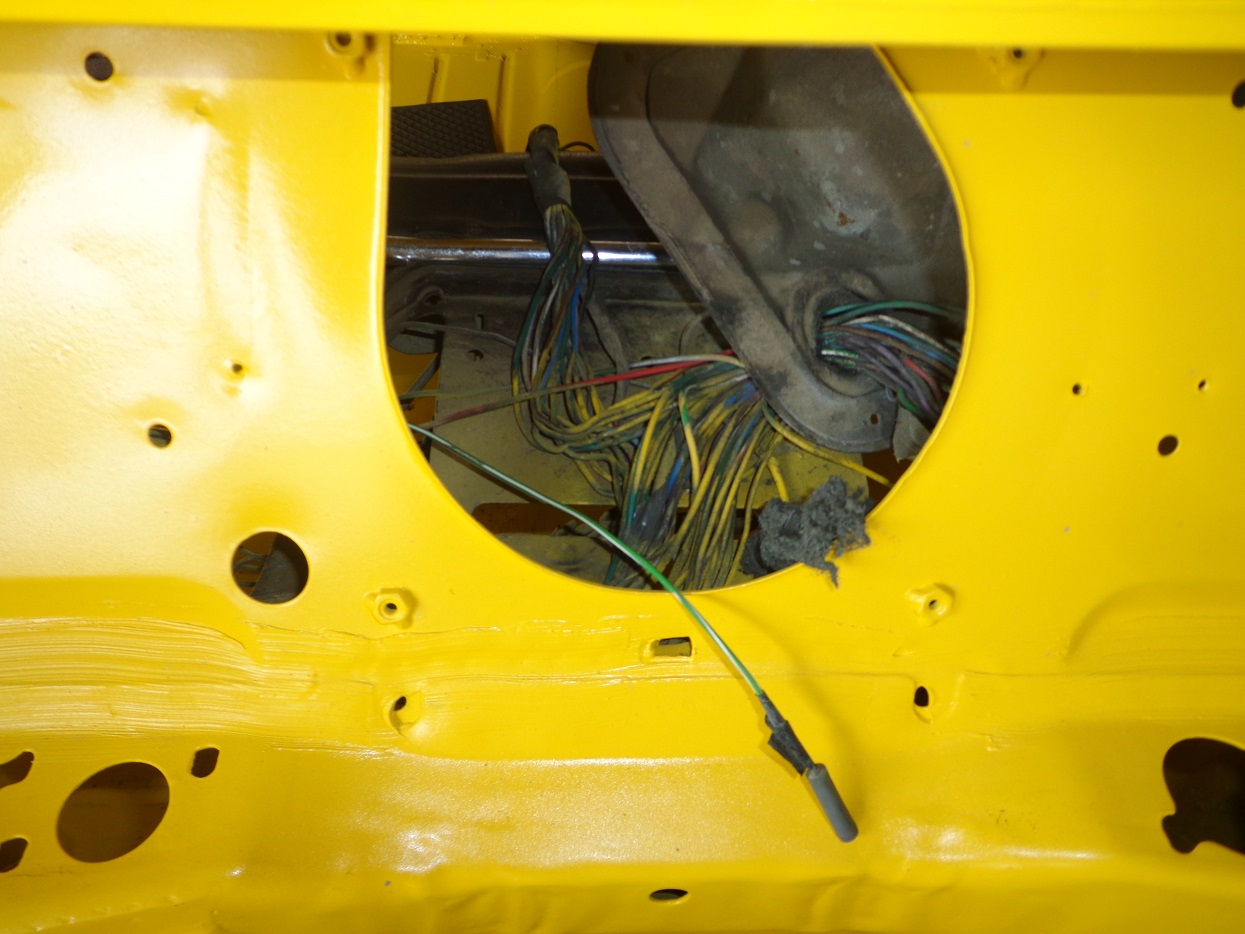

Started to clean the over spray off the wiring harness. I had the harness covered with plastic bags and taped up, the spray painter did not....

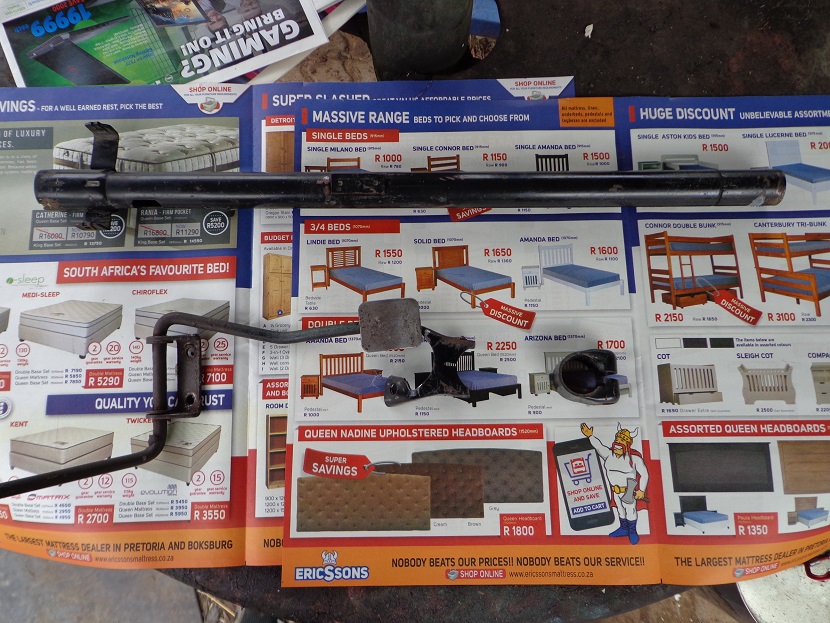

The steering column and brackets and petrol pedal needed some love.

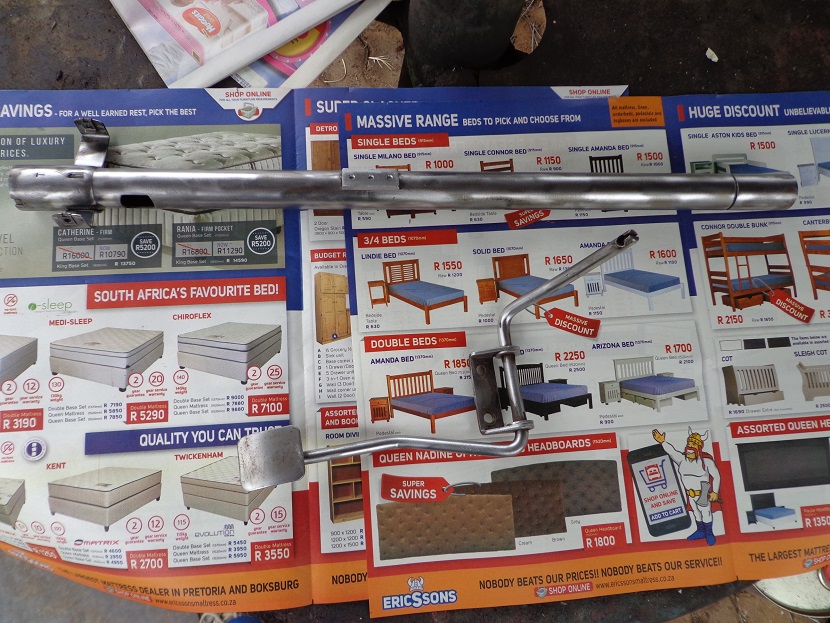

After sanding down.

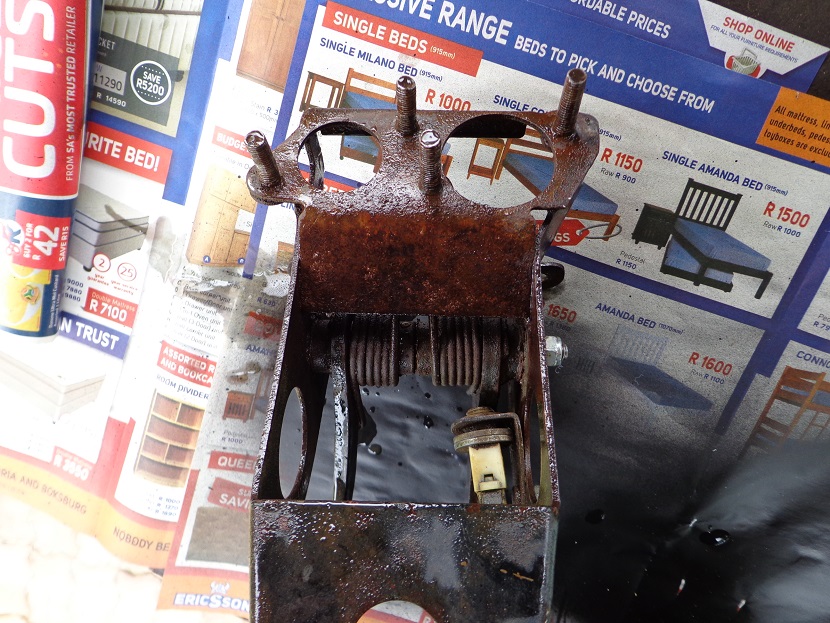

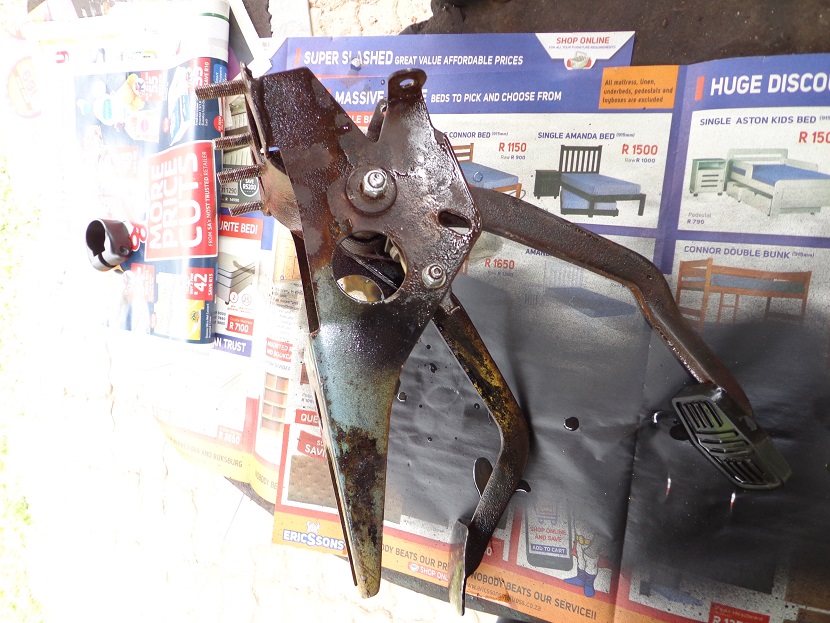

The nasty pedal box sure did need some help.
Different angle of poor pedal box.

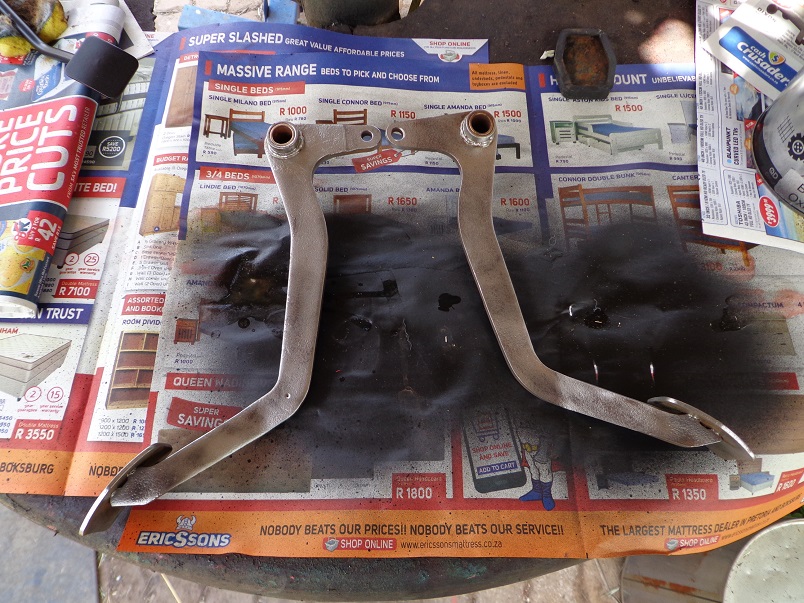

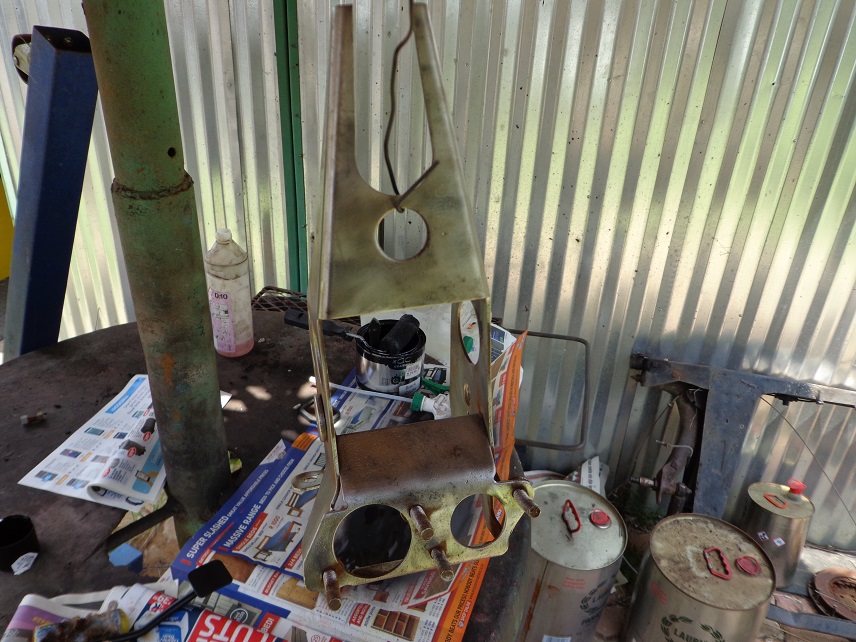

Box was stripped and sanded and pedals also

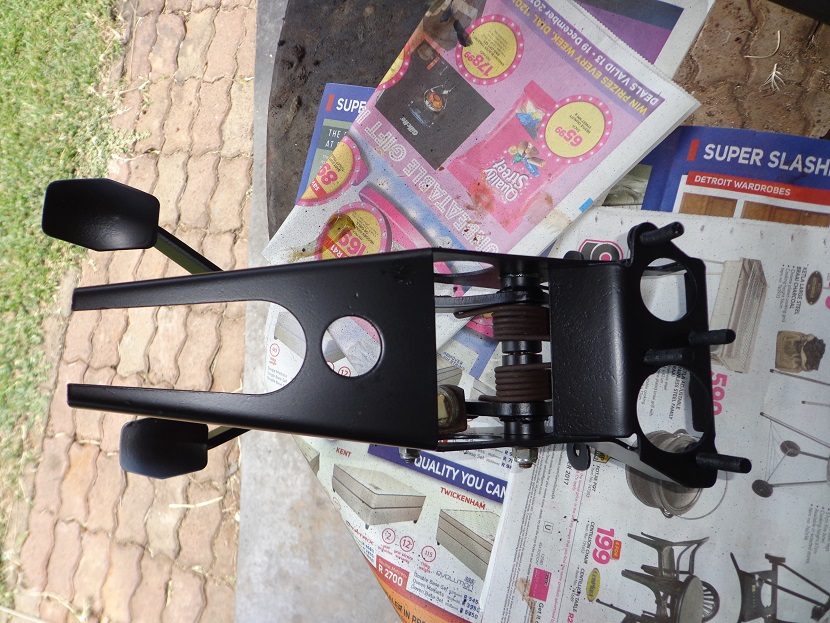

All done.
Had to remove both sub-frames again to fit the brake hoses and fuel line.
The rear sub-frame has been found to be bent so needed changing in anyway.

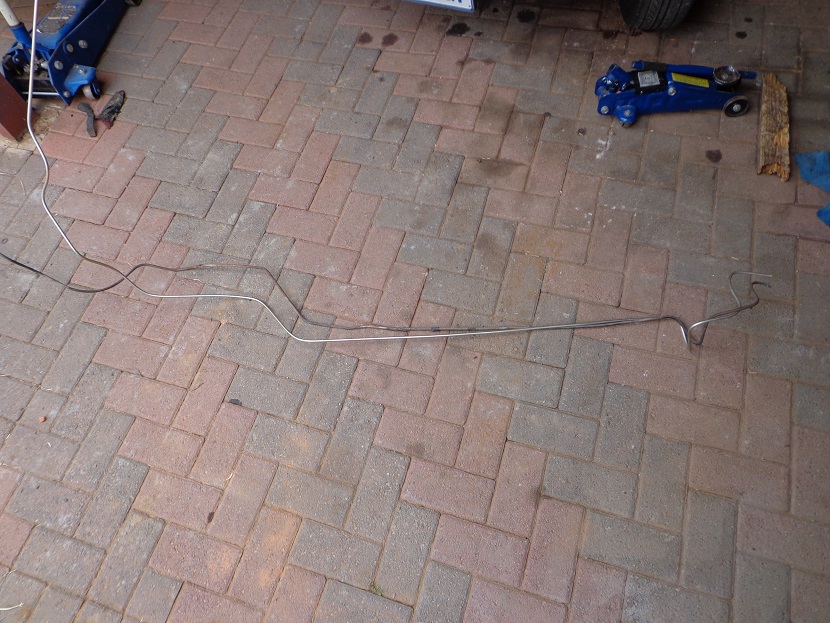

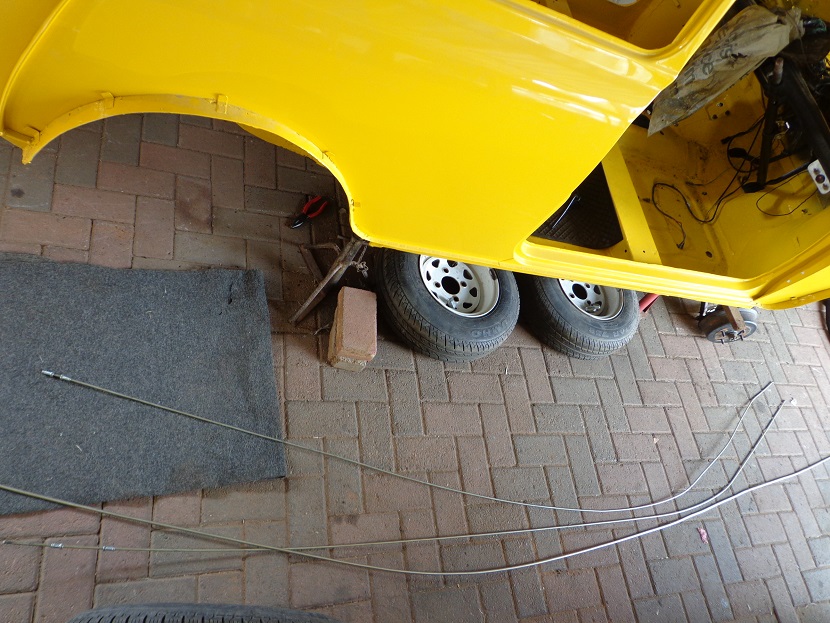

Procured the lines and had flare nuts crimped on as needed. Due to the car having a diagonally split brake system, I nearly misjudged the length of brake lines needed to the back, but it worked out okay.
I used my other GTS's hoses as templates, although the brake lines was different in the engine bay area as to the normal.

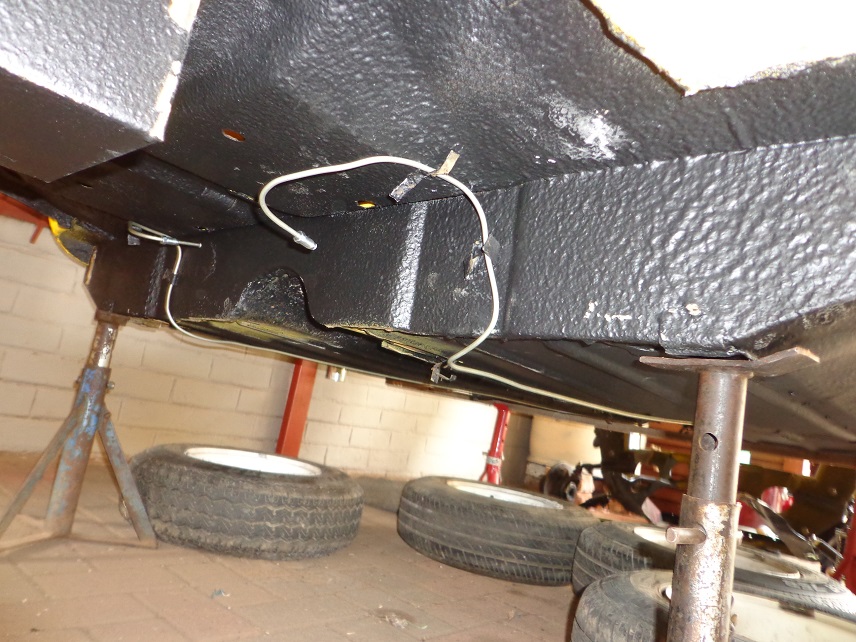

Now fitted loosely in the car, will still bend tabs etc up nicely. Need some p-clips on the back section as the new rear floor pans did not have those.

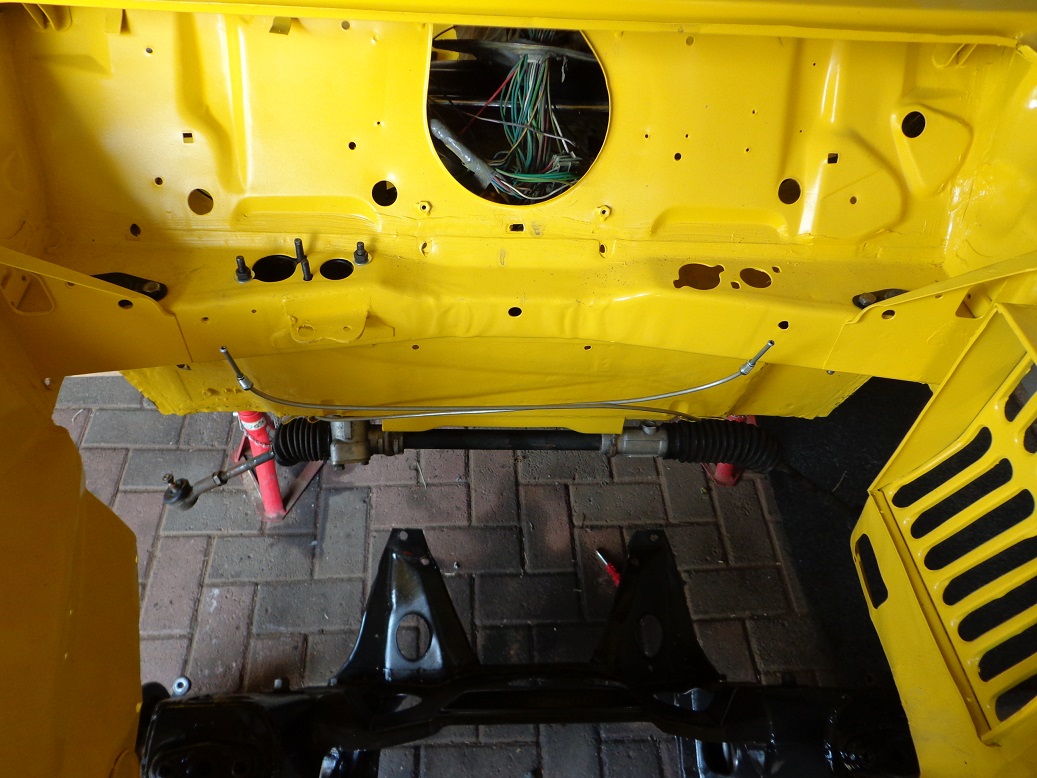

Engine bay area.
Own some minis, break them, fix them, improve them, test them to the limit....
