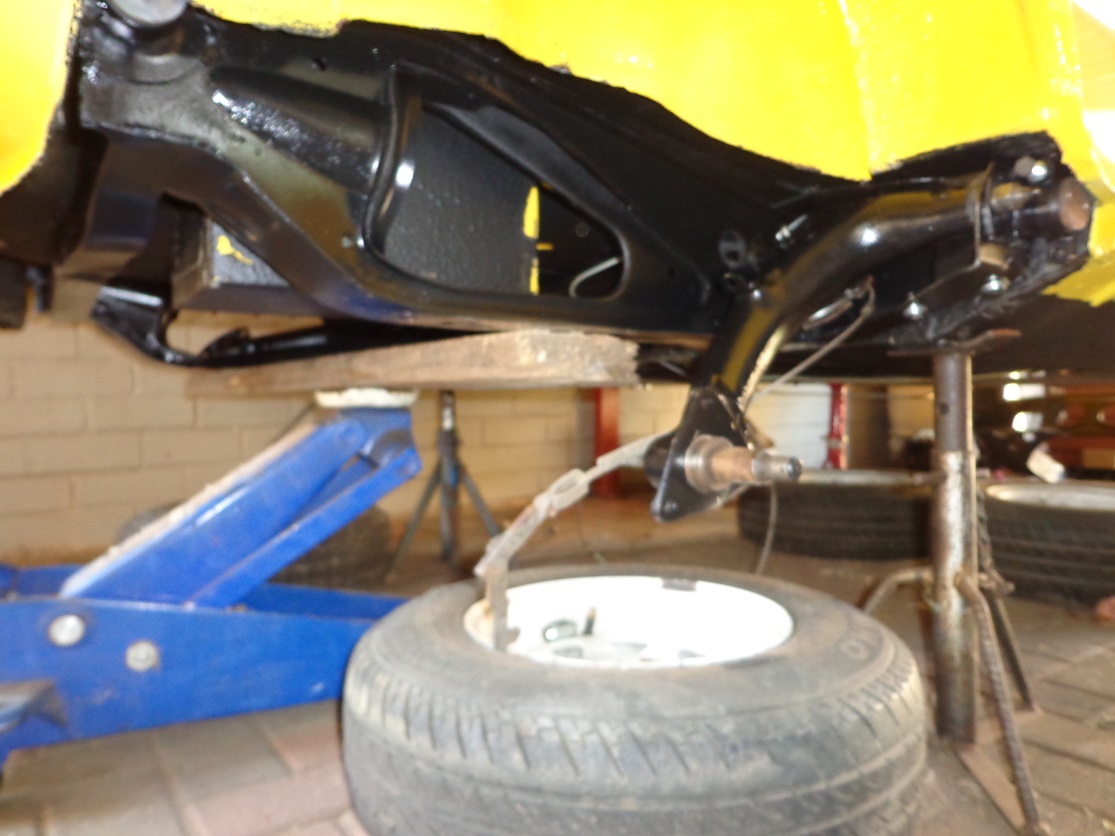

Then the frame was jacked into place.

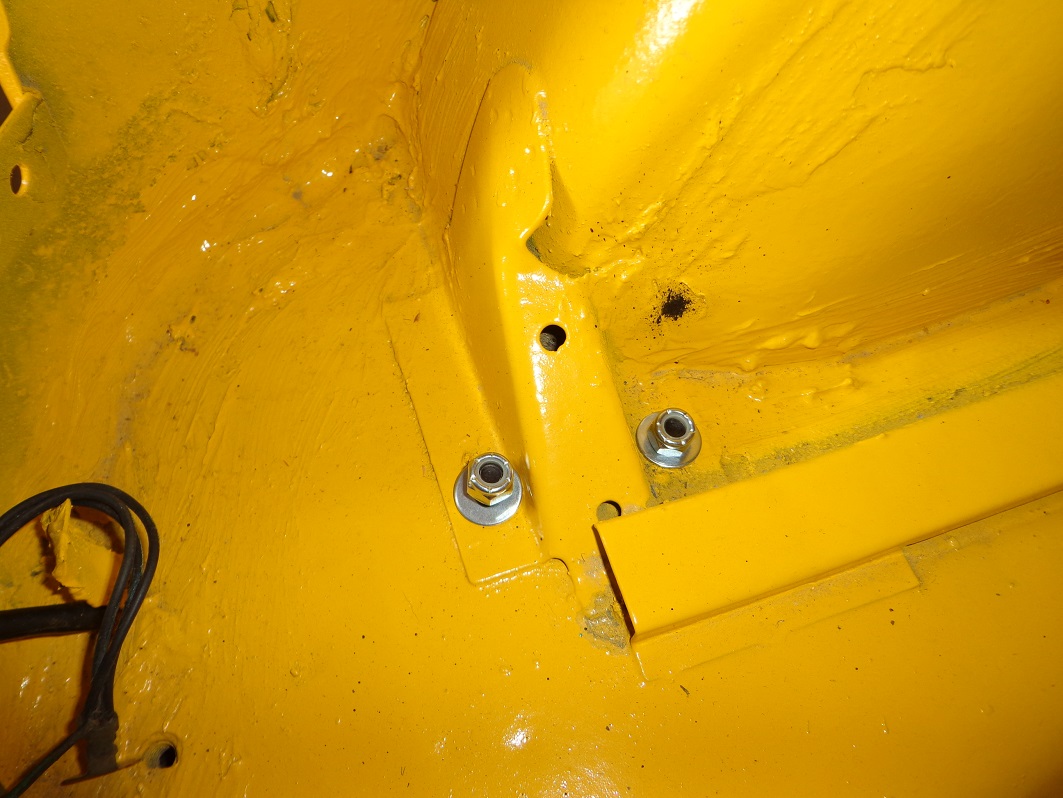

Fitted some new bolts, washers and captive nuts.

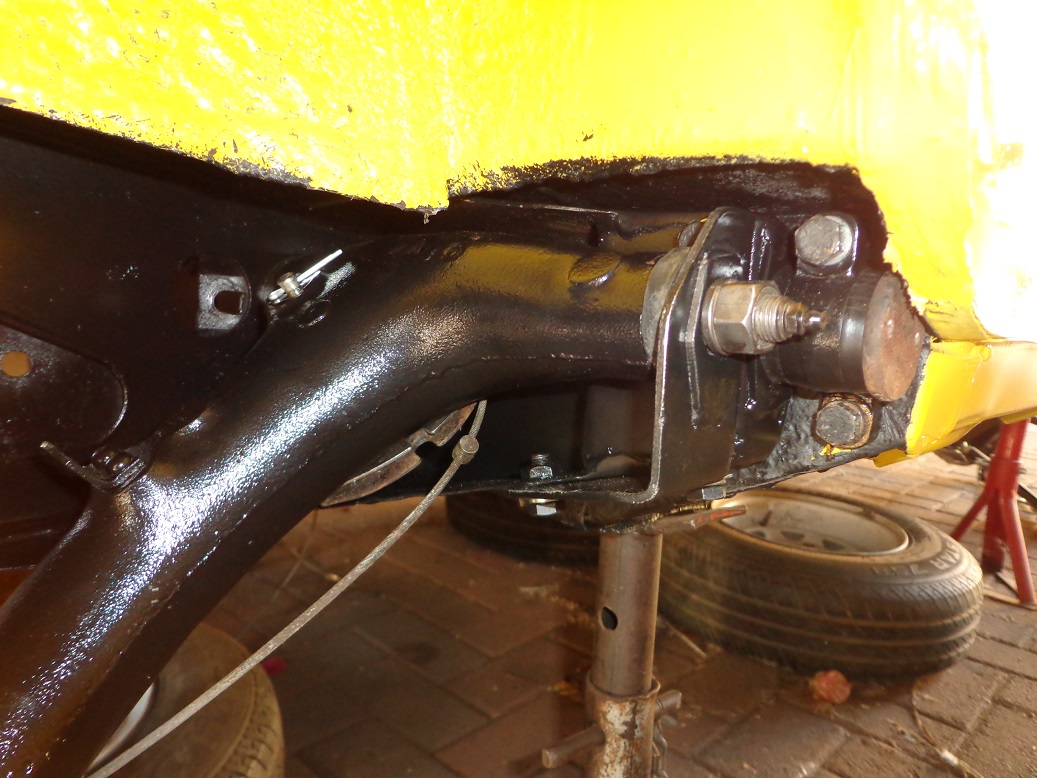

Had a good time to get all the trunnions to line up, but with a little persuasion (was 3 mm out) and the original front mounting bolts it was all good.

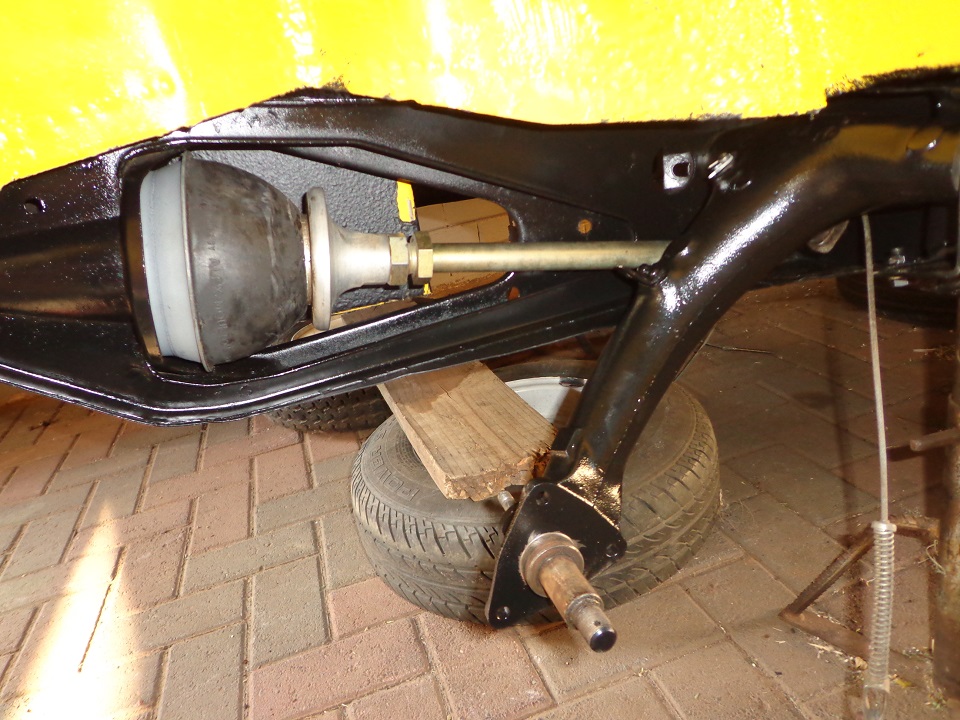

New rubber cones fitted with some copper grease to the hi-los.

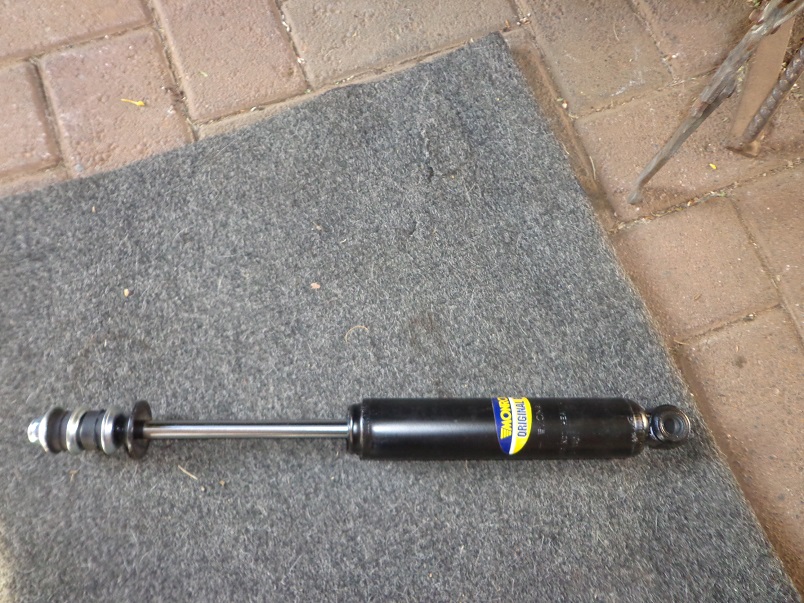

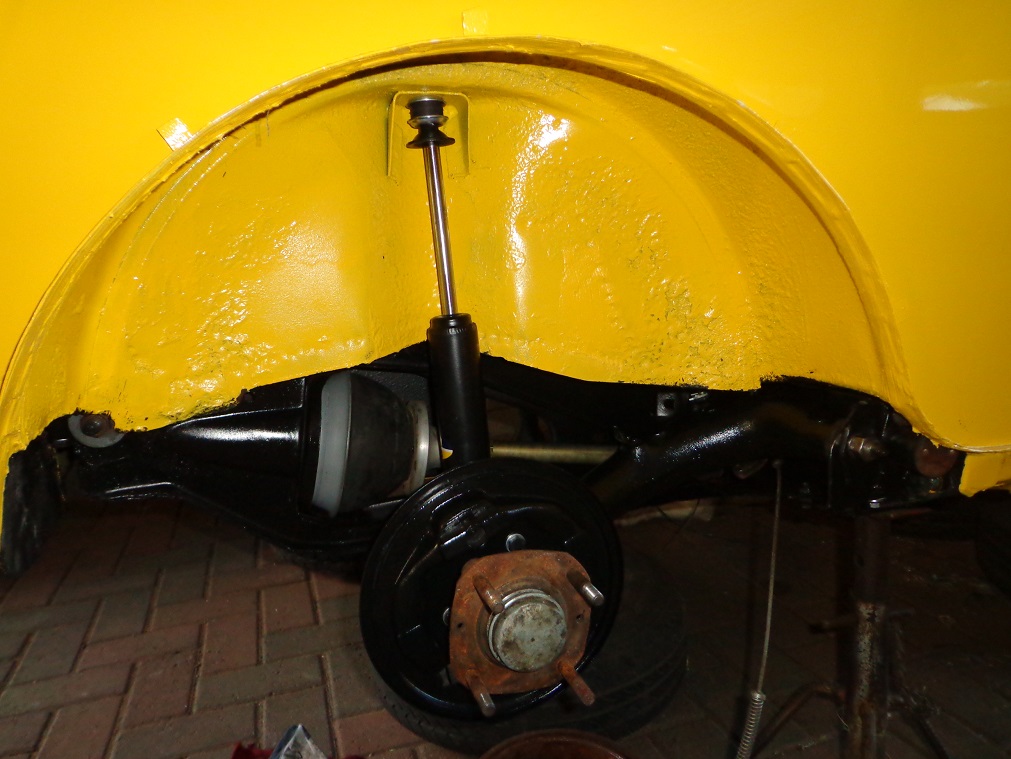

Then some new shocks.....

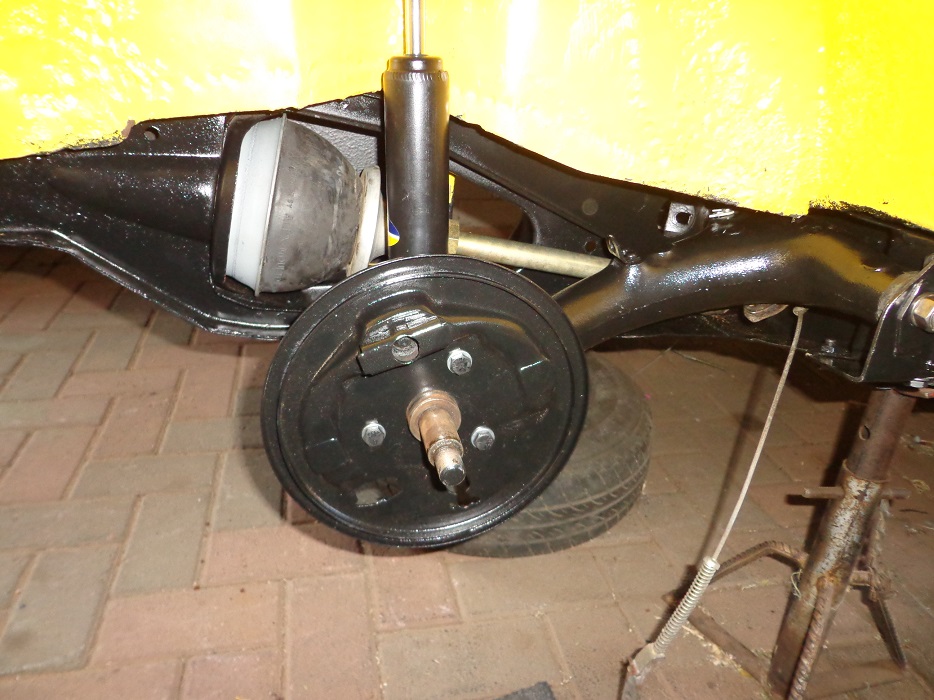

Next in-line was the refurbished back plates.

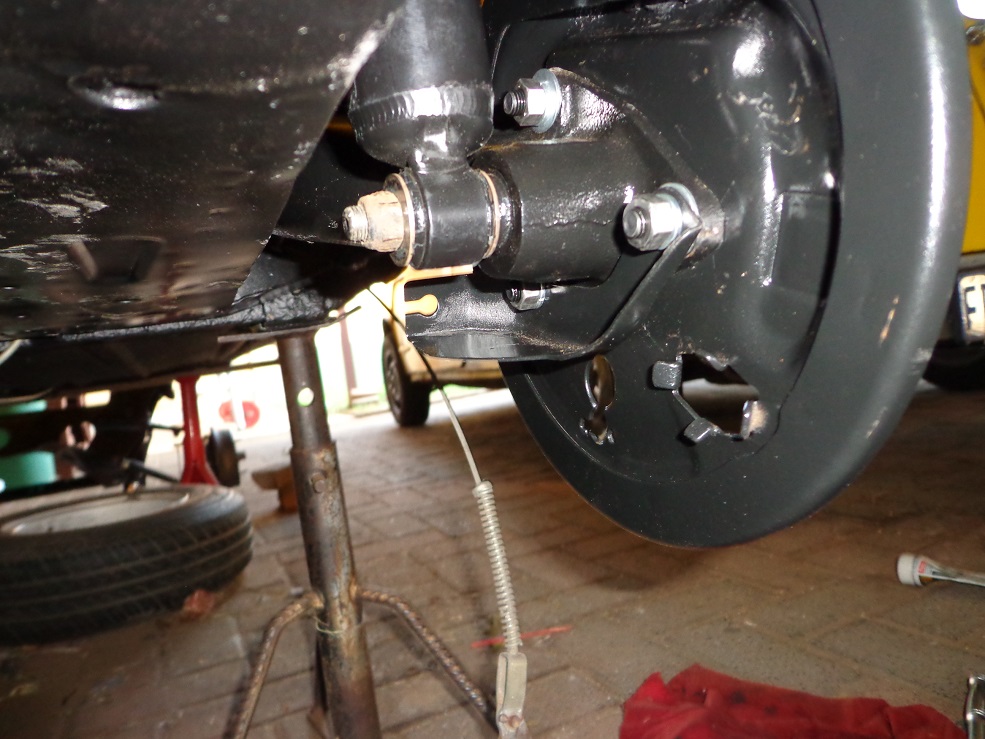

Fitted with spacers between the handbrake bracket and radius arm.
The last item fitted was the hub (I think it will need some wire wheeling on the face atleast).
Fitted some new bolts, washers and captive nuts.
Had a good time to get all the trunnions to line up, but with a little persuasion (was 3 mm out) and the original front mounting bolts it was all good.
New rubber cones fitted with some copper grease to the hi-los.
Then some new shocks.....
Next in-line was the refurbished back plates.
Fitted with spacers between the handbrake bracket and radius arm.
The last item fitted was the hub (I think it will need some wire wheeling on the face atleast).
Own some minis, break them, fix them, improve them, test them to the limit....
