[Guide] Adjusting your valve clearance (rockers/tappets)

Symptom: A "tick-tick-tick" sound coming from your engine that increases with engine speed. Most noticeable during idle.

A possible cause could be your valve clearance being out, causing excessive noise. It is an inexpensive and quick check/fix that can be done on your own without special tools in an afternoon.

Difficulty: Easy - no experience required

Time:    - Less than 1 hour


Tools:   - feeler-gauge (particularly the 0.3mm)
            - large flat screwdriver
            - 16mm socket (a spanner can be used but will take a bit longer)
            - 11mm spanner
            - scraper or razor blade
            - liquid gasket/sealant (I got REINZOSIL Universal sealing compound from Midas for R70) - Optional
            - cork rocker cover gasket (can be easily cut from a generic) Optional if your current one is damaged - They are R35 at Midas as of 2015
            - wheel jack (optional)
            - axle stands (optional)


Method:

Step 1:

Open your bonnet *duh!*. Try and get it secure as high as possible


Step 2: - Removing the rocker-cover

You need to remove your rocker-cover. This can be done easily using a socket wrench or spanner to undo the two rocker-cover bolts. You may need to disconnect any cables that prevent you from lifting the rocker-cover such as the vacuum advance pipe to the carburetor. Make sure to label what you disconnect. In my case; I didn't need to remove any cables. Be careful when lifting the rocker-cover and try not to damage the current cork or fibre gasket. The gasket will often stay behind when you lift the rocker-cover. Either way ignore it for now.





Step 3: - Rotating the engine

You will need a way to rotate your engine. There are two easy ways to do this without running yourself over. In both cases you will need to first remove your spark-plugs, then:
    - You can either turn the big nut on the right hand side of your alternator with a large spanner with the car in neutral. Do this while applying pressure onto the fan belt to stop it slipping.



    - Or you can put the car in 4th gear (hand-brake up) then jack up one of the front wheels (using the jacking mount or sub-frame, not the floor!). The wheel needs to only juuust be off the floor. You can then rotate the engine by turning the tyre by hand. If you have axle stands you can use those to support both wheels if you want, but only one is necessary.
I used the jack method as I didn't have the right sized spanner for the alternator nut and turning the wheel was super easy.


Step 4:

With the rocker cover off and the wheel in the air/spanner on the nut you should take a moment to familiarize yourself with your rockers.
There are 8 rockers (for your 8 valves) numbered from 1 - 8 from the radiator side. Turn the engine using your chosen method for a bit and see how they move - it's pretty cool!

The nuts with a screw in them on the firewall/carb/windshield/back side are where you will be doing the adjusting.
The rocker arm and the valve stem-hat are where you will be checking the clearance.





Step 5: - Checking the gap

The rule of 9 is an easy one to remember: When you want to check the gap of valve no.1 you need no.8 to be fully open. If you want to check no. 2 then no.7 needs to be fully open, etc. The valve numbers should always add up to 9.
Follow this sequence to minimize the amount of engine turning you need to do.

Check valve:     1    with    8 fully open
          then:      3    with    6 fully open
                        5    with    4 fully open
                        2    with    7 fully open
                        8    with    1 fully open
                        6    with    3 fully open
                        4    with    5 fully open
                        7    with    2 fully open

To check the clearance on the desired valve, you make sure the corresponding valve is in the fully open position. You do this by rotating the engine until the corresponding rocker in the right hand column above is at the lowest/bottom point of it's travel. In other words: rotate the engine until the rocker arm stops moving down (just before it starts to move up again). That is the valve fully open.



You then insert the 0.2mm feeler gauge in the gap between the rocker and the valve-hat.
If you cannot get the gauge in then the gap is too small. If it is a loose fit then the gap is too big. The feeler gauge needs to be a tight fit where it requires some effort to insert and remove it. Like putting your foot into a tight shoe.





Step 6: - Adjusting the gap

To adjust the gap you first loosen the lock-nut with the ring side of the 11mm spanner in an anti-clockwise direction. You only need to loosen it about half a turn.
You then turn the adjuster-screw to decrease (anti-clockwise) or increase (clockwise) the gap. Use the biggest screwdriver that fits to reduce damaging the adjuster-screw head
Once you are happy with the gap, you then need to hold the adjuster-screw in position while you tighten the lock-nut (clockwise). The lock-nut needs to be tightened firm so that it doesn't rattle off but not over kill! Don't force it!
Check the gap one last time to make sure the adjuster-screw didn't move then move onto the next one by again rotating the engine until the corresponding valve is in the fully open position.





Step 7: - Replacing the gasket and cleaning

Once you are happy with the gaps, there are a few things to do before you put the rocker cover back on. You will first need to clean the old sealant off and also inspect your cork gasket.
The cork gasket can be removed with a blunt screw driver. Be careful with it if you plan to re-use it. If you have a new one then you don't need to worry, just be careful not to damage the surface of the head.



Skip the next step if you have a new gasket.
To clean the gasket, you simply need to scrape the old sealant off. I used a screwdriver again and gently scraped the old sealant off. It came off quite easily. Again, be careful if you plan to re-use the gasket. I re-used mine as I thought it would be OK, although next time I'll use a new one as the old one is shaped/grooved with how it was originally fitted which can be a bit difficult to line up again.

Before:


After:



Next, it is a good idea to clean the old sealant off of the head. You should also clean off any grease, oil and dirt from the surface being careful not to push any grime into your rockers.





Step 8: - Resealing

The use of sealant is considered unnecessary when using a new gasket, although it will do no harm other than make for some extra cleaning next time. I used sealant as my gasket was very old and I wanted to reuse it. It's up to you.

Now comes the fun(messy) part. Place your rocker-cover upside down and squeeze a small pea sized bead of sealant along the groove/sealing edge. Once you are happy, fit your gasket on the upside down rocker-cover making sure that it makes a good seal with no gaps. Next smear a thin amount of sealant on the gasket face that will be in contact with the engine head (I used my finger so my hands were very dirty at this point so no pictures).

Once done you then carefully replace the rocker-cover (with the gasket stuck to it) back onto the head, with the oil filler neck on the radiator side.



Step 9:
Now all that is left is to tighten the rocker-cover bolts and replace your spark plugs and leads and any cables you disconnected. You can also run your finger around the bottom edge of the rocker-cover to smooth out any excess sealant that may have been forced out as you tighten the bolts. Again, the bolts must be tightened firm but not excessively - there is no pressure or force acting on them so do not over-tighten. Check the instructions on your sealant for how long you should leave it to cure before driving.


Step 10:
I did this job in the afternoon/evening so I left it until the next morning then took it for a drive until the engine reached normal temperature. When I got home I checked around the rocker-cover for any oil that may have leaked onto the head (another reason to clean the old oil/dirt off before you replace the gasket). With no leaks, I called it a success! With the gaps correctly adjusted, I even enjoyed a little more braap!


- As a side note, while doing research, I came across this post on the uk mini forum which suggested that there are two different clearances depending on the cam:
With high lift cams (ie 268 duration up) you clearance needs to be 15 thousandths of an inch / 0.38mm
With a standard cam it will be 12 thousandths of an inch / 0.30mm
Click here for the link


- It has also been suggested that if you still notice an excessive ticking noise that the tappet hats may be worn. The little bump may be indented from the rocker-arm so when you insert your feeler-gauge you are getting an incorrect reading.

Please feel free to comment with any suggestions or tips you have and how useful you found the guide.

Here are some photos from the mini run along the west coast on Saturday - 29/08/2015. Good turn out with some new members and 4 GTSs!

Both these GTSs are very original:


Check out this really mean looking bullnose



A lot of work has gone into this bullnose:


3 of the 4 GTSs in one shot.

Successful Engine Run-in .
Installing a new rebuilt engine in your car
will give it a major “shot in the arm” in any
number of ways. In order to get the most of
this change we suggest that you take the
time while the engine bay is empty to do a
thorough cleaning of the area.
We suggest you carefully examine such
items as motor mounts; fuel, water and
clutch hoses and replace them if they are
cracked or stressed. This is also a good
time to have the radiator checked by
reputable shop and have any necessary
repairs done. Be sure to check the condition
of your electrics, looking for corroded
connectors and frayed and /or broken wires
(including battery and ground cables) since
a bad ground or corroded connection can
take away all the performance you are
buying!
Also carefully examine your fuel and
hydraulic lines and repair or replace them
now, while you have the room to do it
comfortably.
This is also the time to carefully check the
carburetor(s) and rebuild if required. Look
closely for play around the throttle shafts,
since air can leak past a worn shaft and
give you fits at tune-up time. Check and
replace points, cap and rotor as needed
and look for excess play in the distributor.
Remember, some of our cars are 40 years
old or better, so make the extra effort to
give that new engine a good home!
Run-in Procedures
Read these procedures thoroughly before
starting your engine. Have a good shop
manual nearby.
Your Mini Mania rebuilt engine comes to
you in a DRY condition. It has been put
together with quality assembly lubricants in
all the areas of high stress and extreme
pressure, such as the cam and lifter
interface, the crankshaft main and rod
bearings and the valve train. It has not
been pre-run or dynoed, so you will need
to “prime” the oil pump while filling the
sump for the first time.
To do this, remove the ”banjo” bolt at the
upper rear of the engine and fill the
passage leading to the oil pump with motor
oil. Replace the bolt.   Fill the oil filter with
oil and replace. Continue to pour the rest
of the required amount of oil through the
oil cap. Use a high-quality oil such as
Valvoline, Castrol or Pennzoil. Never use
"bargain" oils in your engine at any time!!!
The money you "save" will be spent any
times over in maintainance costs at a later
date. DO NOT, DO NOT, DO NOT use
synthetic lubricants of any kind in this
engine at any time! This is particularly
important for Mini owners who have to
lubricate both the engine and the
transmission with the same oil!
Remove the spark plugs and turn over the
engine with the starter until the oil
pressure gauge shows full pressure.
Be sure to correctly fill the cooling system
with the correct mix of coolant (anti-freeze)
and water according to the manufacturers
recommendations (also found elsewhere in
this database) or use a water pump
lubricant in the water.
Re-install the plugs and prepare to start the
engine. The carburetor should have the jet
tubes set 2 turns down from flush with the
bridge and the needle(s) centered in the
bore(s).
Start the engine and hold the engine speed
at 2000-3000 RPM for at least 20 minutes.
This ensures plenty of oil to the camshaft
bearings. Speeds slower than 2000 RPM
may starve a cam of oil. You may want to
do this during the day to avoid
disagreements with your neighbors.
After this initial run-in, retorque the
cylinder head, HOT, to 50 ft/lbs and
readjust the valves according to your shop
manual.
Do not exceed 3000 rpm for any prolonged
period for the first 500 miles, at which
time, change the oil and readjust the
valves. After this you may gradually increase
RPM limits over the next 1000 miles or so.

Saturday 5th September 2015

MOCSA will be leaving at Blockhouse Engen R59 South at 9h30 for the Wheels at the Vaal festival of Motoring, driving in convoy to 14 Vaal Road, Sylviavale, Vanderbijlpark.

Everybody welcome.

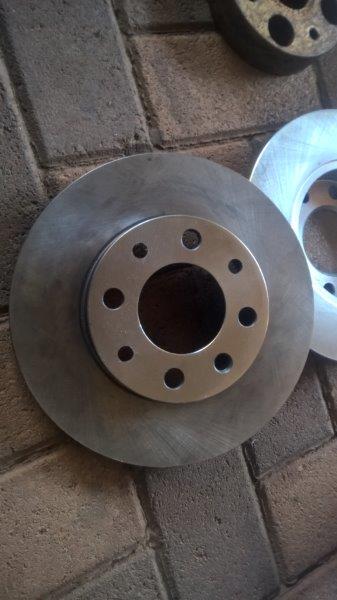

When I changed to 13" wheels, It gave me the opportunity to do the VW Golf brake mod. The parts are relatively cheap and the braking performance is great. I bought two new disks from Midas, with new brake pads and then two new calipers from Goldwagen. I managed to get hold of two adapter plates from someone who does these conversions for about R400, Drilled and tapped the plates to fit the old drum hub.

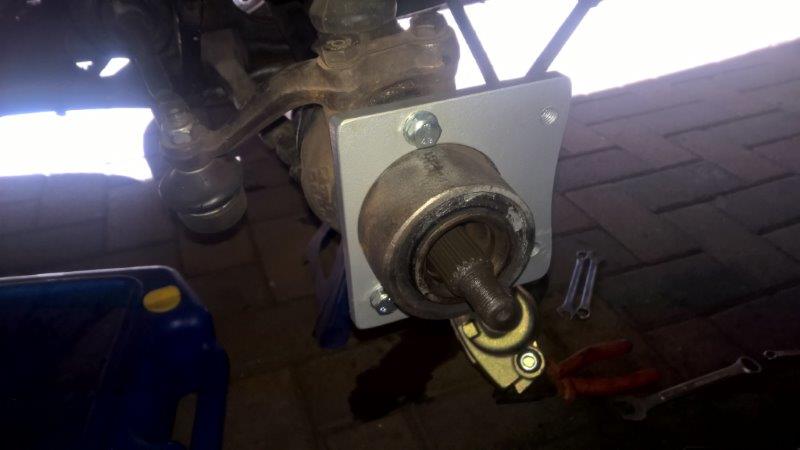

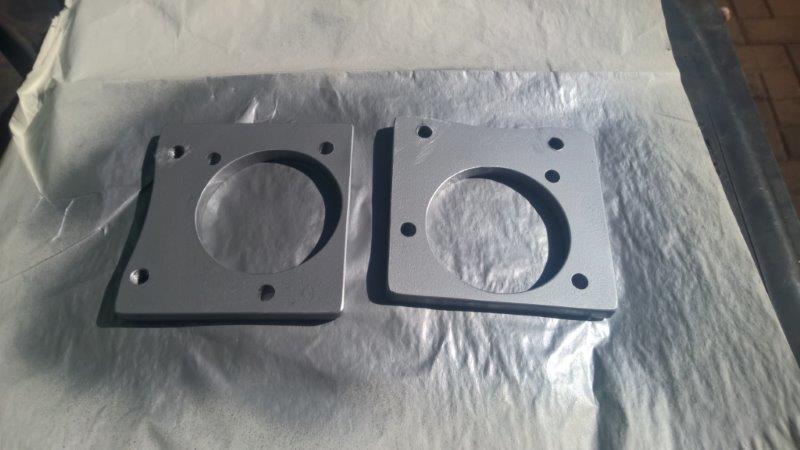

Removed the drum brake bits and fitted the new plates.



These had to be spaced by about 8mm to get the disk to run in the centre of the caliper.



I then redrilled the PCD in the new disks wiht slightly smaller holes so the disk would centre better on the Mini studs.

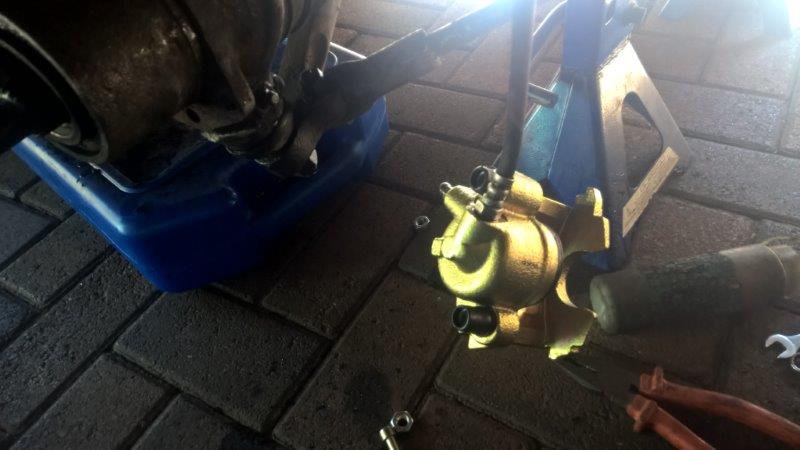

Fitted new calipers, the Mini brake pipes are ok but I think it would be better to get pipes with a banjo type fitting. It would put less strain on the pipes.



Bled the brakes and it was done. You have to space the wheels out by at least 12mm. I used spacers to achieve this. Any less than 12mm and the calipers would foul the wheels. the Mini disk brakes, Cooper and GTS, space the front out by 25mm. So anyhting from 12 - 25 mm will be fine.

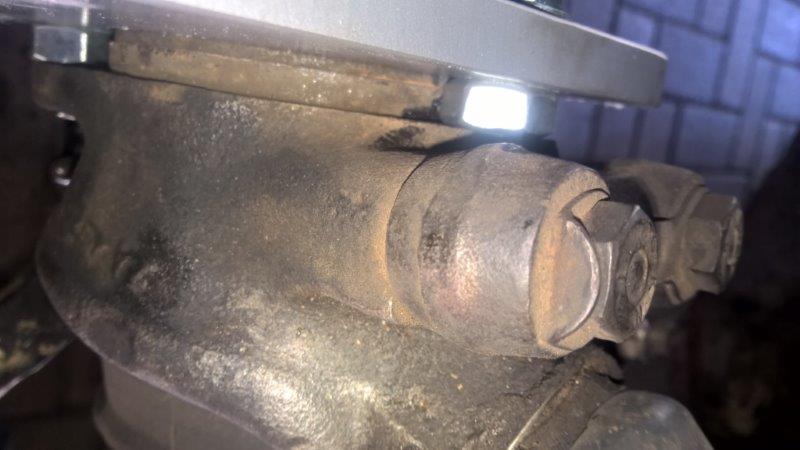

I have the tapered roller bearing fitted to the hubs, the standard ball race won't do. So if you are considering this mod, you have to change to the tapered front wheel bearings.

Hope this helps

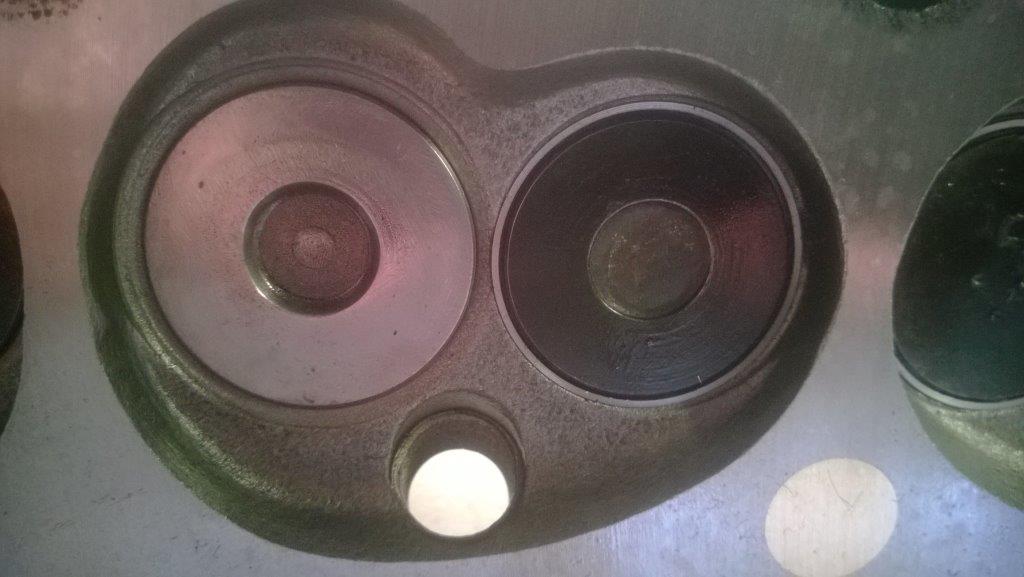

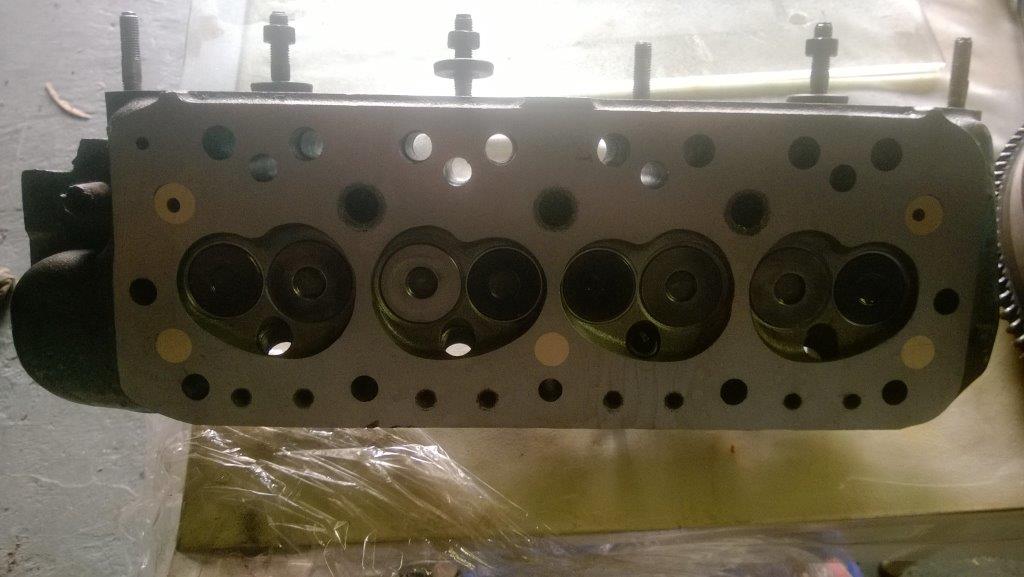

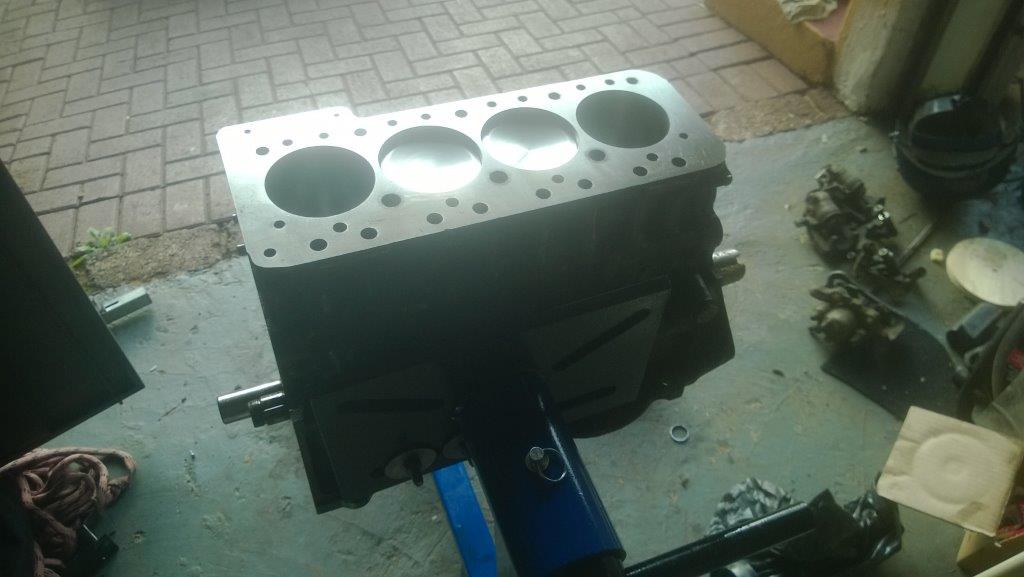

When I had the engineering done to overhaul the engine, I took the opportunity to have hardened valve seats installed on the exhaust valves so I could run on unleaded fuel. Work was done by Alan Y Brink. Superb job. Been running on unleaded for more than a year now. Daily driver.

Attached Files

Thumbnail(s)


We bought the Clubman for way too much money in 2012. On closer inspection we found that the Mini was in a crash at some time and that the floor was folded and bent. The car was previously owned by someone with no mechanical skills and lots of access to bailing wire. Everything was held together with "bloudraad"

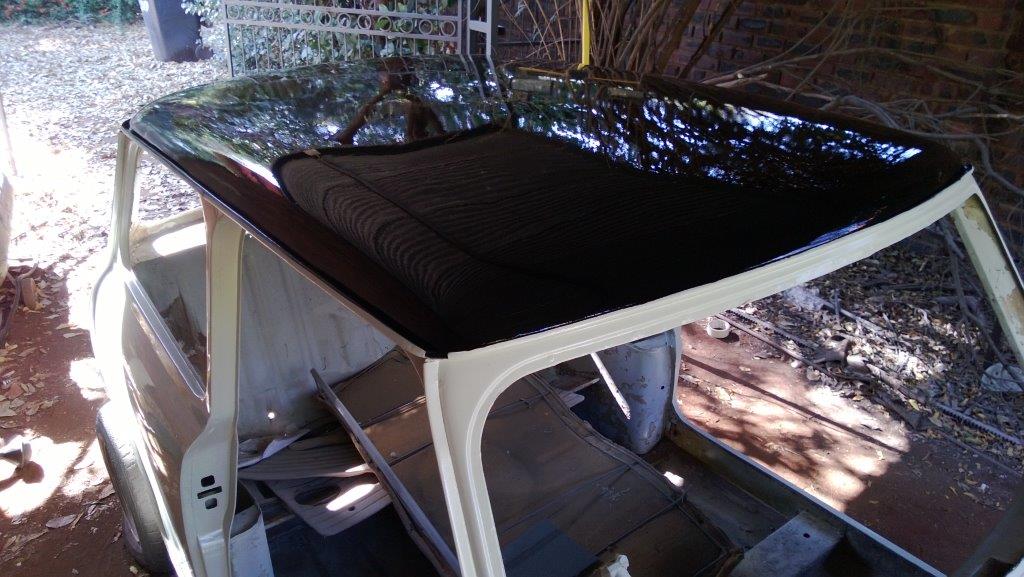

I stripped everything off the shell and manged to get a good shell for a few hundred bucks.

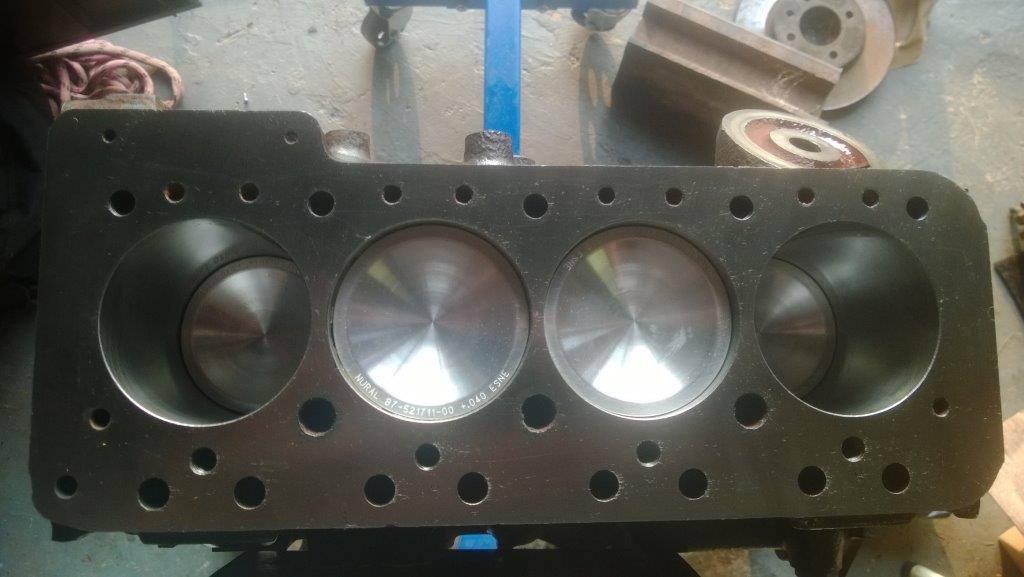

Total rebuild over the span of a year. Resprayed, new interior, new brake lines, CV's, wheel bearings, brakes, master cylinder, clutch master and slave cylinders, Put in a new sunroof.

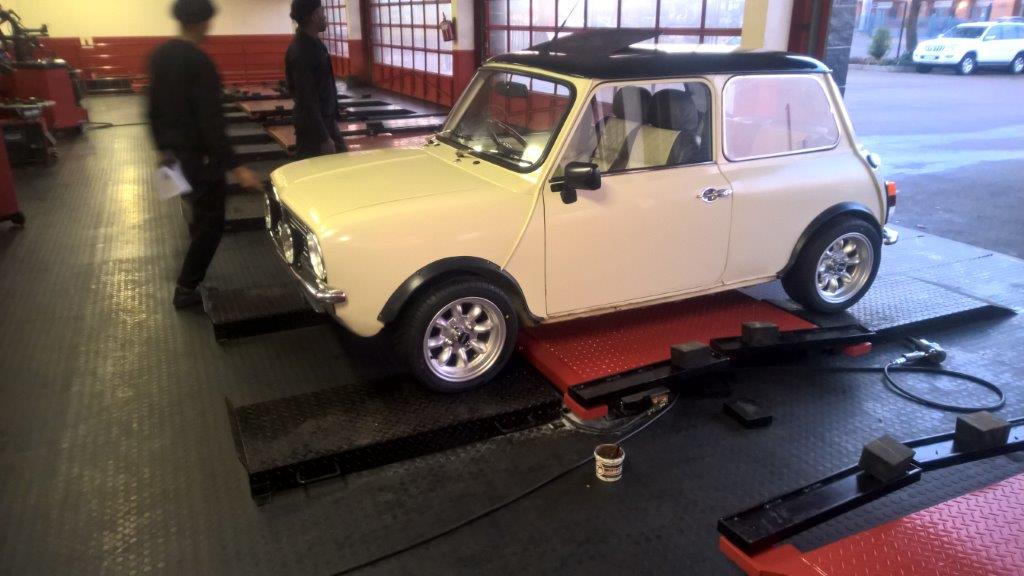

Then we finally got to change the wheels. decide on 13" so I could do the disk brake conversion.
